Home » Products » Hot Air Generator » Vertical / Horizontal Three Pass Hot Air Generator

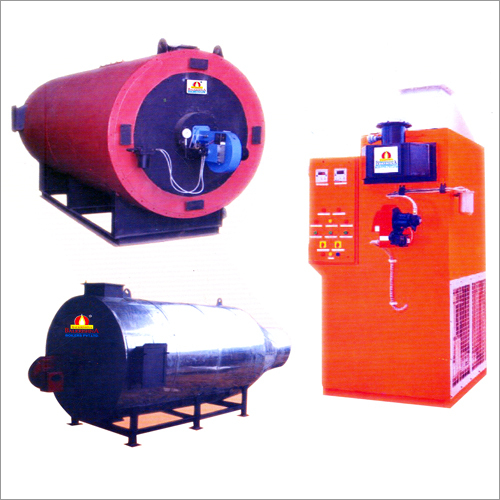

Vertical / Horizontal Three Pass Hot Air Generator

Vertical / Horizontal Three Pass Hot Air Generator
Vertical / Horizontal Three Pass Hot Air Generator
Product Code : 76
Product Description

We have become the topnotch entity by manufacturing and exporting Vertical/Horizontal Three Pass Hot Air Generator. It is manufactured by the experts at our advanced production unit from high quality materials in adherence with the standard quality norms set by the industry. Used for generating hot air for diverse industrial operations, this generator uses coal as a fuel. Our clients can obtain this Vertical/Horizontal Three Pass Hot Air Generator at a very reasonable price.

Features:

  • Excellent operation
  • Superb durability
  • Longer service life

Vertical / Horizontal Three Pass Hot Air Generator

Technical Specifications For Wood Fired H A G

Peramiters

Unit

HP-10

HP-20

HP-40

HP-60

Cap

Kcal/hr

100000

200000

400000

600000

Max out let Temp

ºC

300

300

300

300

Air Flow @ 200º C

M3/hr

2000

4000

8000

12000

ED. Fan

H.P.

5

7.5

10

15

LD. Fan

H.P.

2

2

5

7.5

Fuel Consup

coal

Kg/m

29

58

116

174

wood

Kg/m

41

82

162

246

Efficiency

76 % ± 2 %

Technical Specification For Oil Gas Fired H A G

Peramiters

Unit

HP-10

HP-20

HP-40

HP-60

Cap

Kcal/hr

100000

200000

400000

600000

Max out let Temp

ºC

300

300

300

300

Air Flow @ 200º C

M3/hr

2000

4000

8000

12000

F.D

H.P.

5

7.5

10

15

Burner

H.P.

1/2

1

2

3

Fuel Consup

L. D. O.

Kg/m

11

22

44

66

N. Gas

Kg/m

13.5

27

54

81

Efficiency

76 % ± 2 %
